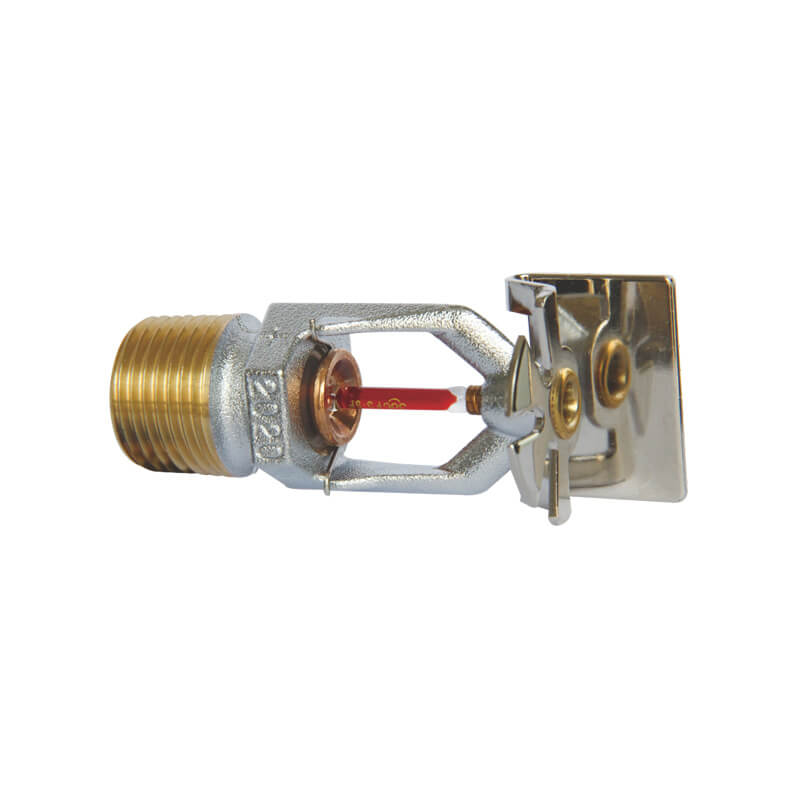

K8.0 quick response horizontal sidewall sprinkler

The K8.0 Quick Response Horizontal Sidewall (HSW) Sprinkler is designed for rapid activation in light and ordinary hazard occupancies. Installed near the ceiling along a wall, it directs most of the water discharge in a horizontal plane across the protected area—ideal for hallways, offices, hotels, and spaces with restricted ceiling access.

Key Features:

• Horizontal sidewall design for wall-mounted installation
• Quick response for faster fire detection and suppression
• High K-Factor (K8.0 / K115) for greater water discharge
• Suitable for light and ordinary hazard areas
• Certificate: UL Listed
• Standard: UL 199, NFPA 13
• K-Factor:0 (K115)
• Operating Pressure: Minimum 7 psi
• Working Pressure: 175 psi
• Test Pressure: 500 psi (Factory hydrostatic test)
• Surface Finishes: Rough brass, chrome plated, white painted, etc.
